Chair of Electromagnetic Theory

Electro-Quasistatic Simulations of Gas-Insulated Systems Considering Nonlinear Field Control Techniques

Project manager
Prof. Dr. rer. nat. Markus Clemens

Project member
Hendrik Hensel, M.Sc.

Project duration
Since 2022

High voltage direct current, gas-insulated line, charge accumulation, electro-quasistatic fields, field control techniques, field grading materials, conductivity, sulfur hexalfluoride, environmentally friendly insulating gas

Project description

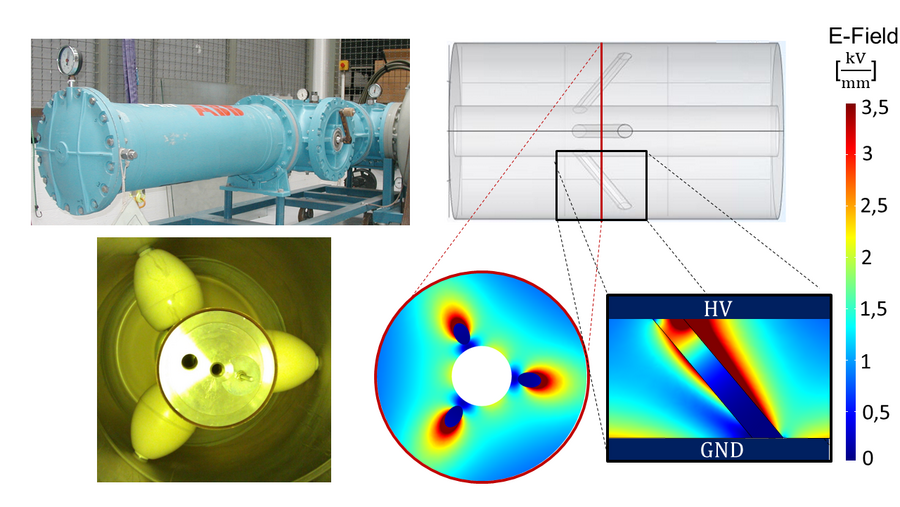

In recent years, the demand of renewable energy has increased, to reduce the amount of carbon dioxide (CO2) in the atmosphere. Renewable energy, such as offshore wind power plants, are often located far from where it is needed. Thus High Voltage Direct Current (HVDC) is needed to transmit high electric power over long distances. Gas-insulated systems, e.g. gas insulated transmission lines (GIL), are a possible solution, resulting from low fault rates, considerably reduced apparatus sizes and a long lifetime. Within a gas system, the inner conductor is surrounded by the insulating gas, commonly sulphur hexafluoride (SF6), and kept in position by a massive insulating spacer.

Gas insulated systems under alternating current (AC) has been developed and optimized in the last decades. However, the experience under HVDC is limited. The main difference between AC and DC is the charge accumulation under a constant applied voltage, which yields in local field enhancement, a reduction of the lifetime of the solid insulating spacer and the reliability of the system. Especially the interface between the insulating gas and the solid spacer is sensitive to high electric fields and partial discharges can easily occur. Thus, the electric field under DC conditions needs to be determined accurately for the reliability and the design of the gas-insulated system. Numerical simulations are a powerful tool to determine the electric field distribution in gas-insulated systems. Resulting from slow charge accumulation, slowly time varying electro-quasistatic fields are seen under DC conditions.

Within this project, conductivity models for the gaseous and solid insulation materials are developed, to obtain accurate simulation results. Since the conductivity of the insulation materials has a nonlinear dependency on electric field, temperature and other parameters, nonlinear simulation of high-resolution three-dimensional geometries are applied to analyze novel field control techniques, to reduce electric field stress and charge accumulation. Furthermore, SF6 is a greenhouse gas, with a global warming potential 23,900 times higher than CO2 and an atmospheric lifetime up to 3,200 years. Therefore, more environment-friendly insulting gases as an alternative to SF6 are examined in this project.

Project-related publications

H. Hensel and M. Clemens, "Comparison of Simulations of the Gas Conduction in HVDC GIL by Application of Nonlinear Conductivity Model and Ion-Drift-Diffusion Model", COMPEL, vol. ahead-of-print, 01 2024. Emerald Publishing Limited.
H. Hensel and M. Clemens, "Numerical Simulation of the Electric Field in HVDC GIL with Application of Surface Conductivity Gradient Material", IEEE 2024 International Conference on Dielectrics (IEEE ICD 2024), Toulouse, France, 30.06.-04.07.2024, Nov. 2023.
H. Hensel, C. Jörgens and M. Clemens, "Simulation of Permittivity and Conductivity Graded Materials for HVDC GIL for Different Voltage Forms", 18th International IGTE Symposium on Numerical Field Calculation in Electrical Engineering (IGTE 2022), Graz, Austria, 18.-21.09.2022, 08 2023.
H. Hensel and M. Clemens, "Numerical Simulation of the Electric Field in HVDC GIL Considering Defects", IEEE Conference on Electrical Insulation and Dielectric Phenomena (2023 IEEE CEIDP), East Rutherford, NJ, USA, 15.-19.10.2023, 01 2023.
H. Hensel, M. Henkel, N. Haussmann, C. Jörgens, S. Stroka and M. Clemens, "GPU-Accelerated Field Simulation of HVAC Gas Insulated Lines", IEEE 20th Biennial Conference on Electromagnetic Field Computation (CEFC 2022), Denver, CO, USA (Online Conference), 24-26 October 2022, IEEE, 05 2022.
C. Jörgens, H. Hensel and M. Clemens, "Modeling of the Electric Field in High Voltage Direct Current Gas Insulated Transmission Lines", IEEE 2022 International Conference on Dielectrics (IEEE ICD 2022), Palermo, Italy, 03.-07.07.2022, 2022.
H. Hensel, C. Jörgens and M. Clemens, "Numerical Simulation of Electric Field Distribution in HVDC Gas Insulated Lines Considering a Novel Nonlinear Conductivity Model for SF6", VDE Workshop Hochspannungstechnik (VDE HST 2022), Berlin, Germany, 08.-10.11.2022, 2022.
H. Hensel, "Numerische Simulation der elektrischen Feldverteilung in gasisolierten Systemen unter Berücksichtigung von nichtlinearen Feldsteuerungstechniken", 2021.
